Electric steam boiler
Electric steam boiler SEE Series SEE-5/10/15/20/25/30/35/40
An eco-friendly electric steam boiler with no pollution at all
- Excellent performance and excellent economics
- This is an economical boiler that continuously generates high-dry steam to maximize thermal efficiency in a short period of time and maintains continuous thermal performance, thereby saving fuel costs.
- Strong durability and robustness
- Durability, sturdiness, and safety are the best advantages as it is specially manufactured using the know-how of Sekwang Boiler, which uses carefully selected materials and parts with meticulous design and pursues quality perfectionism.
- Minimization of installation space
- By innovating the specifications with a compact design, we pursue greater convenience and minimize the installation space, allowing ample space utilization.
- Exemption from various inspections
- It is exempt from various inspections (installation inspection, continuous use inspection), so it is easy to maintain, and anyone can use it as a fully automatic boiler that ensures safety.
- Main use
- Plywood factories, rubber factories, press users, textile factories, chemical factories, leather factories, paper manufacturing, printing, and other industries.

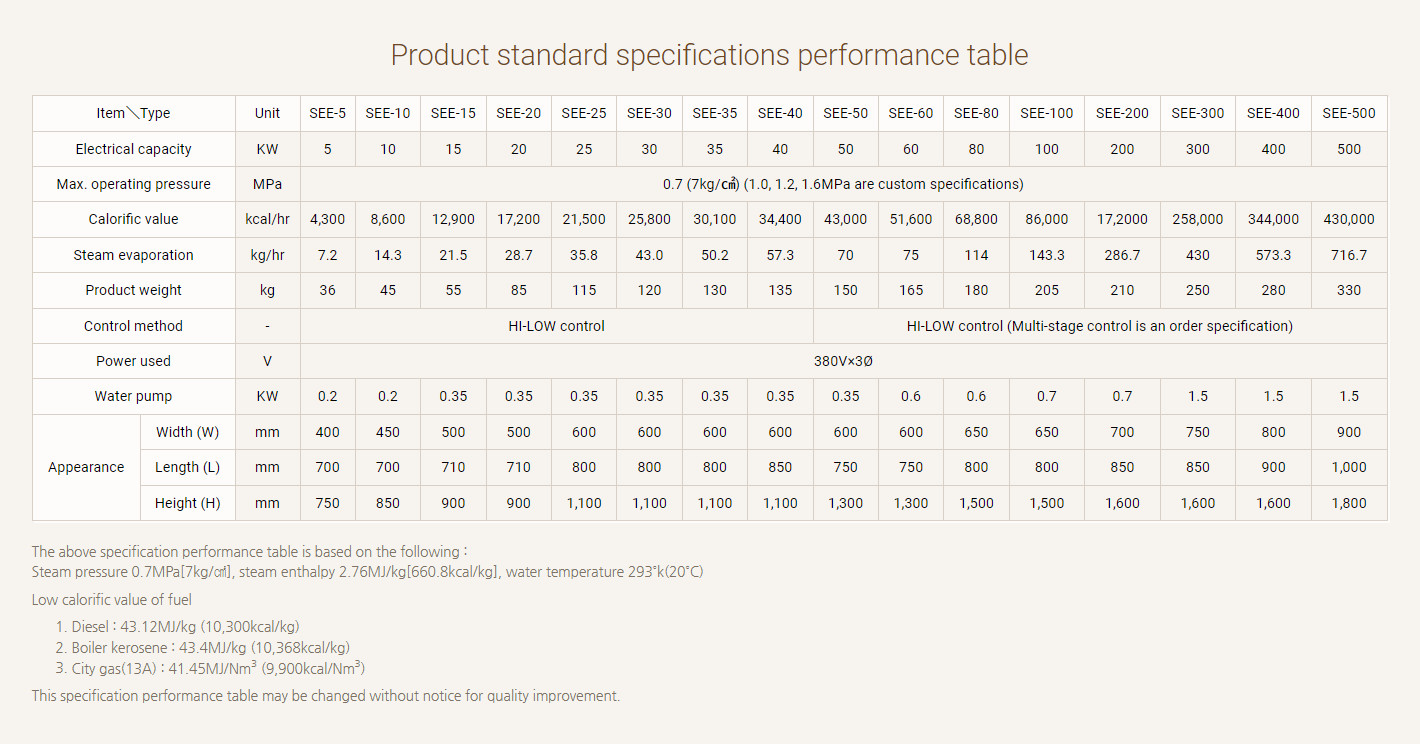

Product standard specifications performance table
| Item＼Type | Unit | SEE-5 | SEE-10 | SEE-15 | SEE-20 | SEE-25 | SEE-30 | SEE-35 | SEE-40 | SEE-50 | SEE-60 | SEE-80 | SEE-100 | SEE-200 | SEE-300 | SEE-400 | SEE-500 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical capacity | KW | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 80 | 100 | 200 | 300 | 400 | 500 | |
| Max. operating pressure | MPa | 0.7 (7kg/㎠) (1.0, 1.2, 1.6MPa are custom specifications) | ||||||||||||||||
| Calorific value | kcal/hr | 4,300 | 8,600 | 12,900 | 17,200 | 21,500 | 25,800 | 30,100 | 34,400 | 43,000 | 51,600 | 68,800 | 86,000 | 17,2000 | 258,000 | 344,000 | 430,000 | |
| Steam evaporation | kg/hr | 7.2 | 14.3 | 21.5 | 28.7 | 35.8 | 43.0 | 50.2 | 57.3 | 70 | 75 | 114 | 143.3 | 286.7 | 430 | 573.3 | 716.7 | |
| Product weight | kg | 36 | 45 | 55 | 85 | 115 | 120 | 130 | 135 | 150 | 165 | 180 | 205 | 210 | 250 | 280 | 330 | |
| Control method | - | HI-LOW control | HI-LOW control (Multi-stage control is an order specification) | |||||||||||||||
| Power used | V | 380V×3Ø | ||||||||||||||||
| Water pump | KW | 0.2 | 0.2 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.6 | 0.6 | 0.7 | 0.7 | 1.5 | 1.5 | 1.5 | |
| Appearance | Width (W) | mm | 400 | 450 | 500 | 500 | 600 | 600 | 600 | 600 | 600 | 600 | 650 | 650 | 700 | 750 | 800 | 900 |
| Length (L) | mm | 700 | 700 | 710 | 710 | 800 | 800 | 800 | 850 | 750 | 750 | 800 | 800 | 850 | 850 | 900 | 1,000 | |
| Height (H) | mm | 750 | 850 | 900 | 900 | 1,100 | 1,100 | 1,100 | 1,100 | 1,300 | 1,300 | 1,500 | 1,500 | 1,600 | 1,600 | 1,600 | 1,800 | |
The above specification performance table is based on the following :
- Steam pressure 0.7MPa[7kg/㎠], steam enthalpy 2.76MJ/kg[660.8kcal/kg], water temperature 293˚k(20˚C)
- Low calorific value of fuel
- Diesel : 43.12MJ/kg (10,300kcal/kg)
- Boiler kerosene : 43.4MJ/kg (10,368kcal/kg)
- City gas(13A) : 41.45MJ/Nm3 (9,900kcal/Nm3)
- This specification performance table may be changed without notice for quality improvement.
