Vertical fire tube steam boiler
Vertical fire tube steam boiler SES Series SES-100/200/300/500/1000/1500/2000
It is an economical boiler that is easy to use and maximizes safe operation, convenience, and thermal performance.
- Product Features
-
- A long lifespan and safety are secured through a unique structural arrangement and a special structure using a lifting guidance method.
- It is economical because waste heat above 50℃ can be recovered by attaching a supply water preheater.
- It has a vertical structure that makes it easy to install even in narrow spaces, and is very durable even against failures in boiler water quality management, so it has a long lifespan.
- By adopting a fully automated method, water supply, operation, and burner combustion devices can be automatically controlled with a single switch, and various safety devices are attached so anyone can use it with confidence.
- When equipped with the artificial intelligence control device SE-Ai system, operation and maintenance become easier. (Optional)

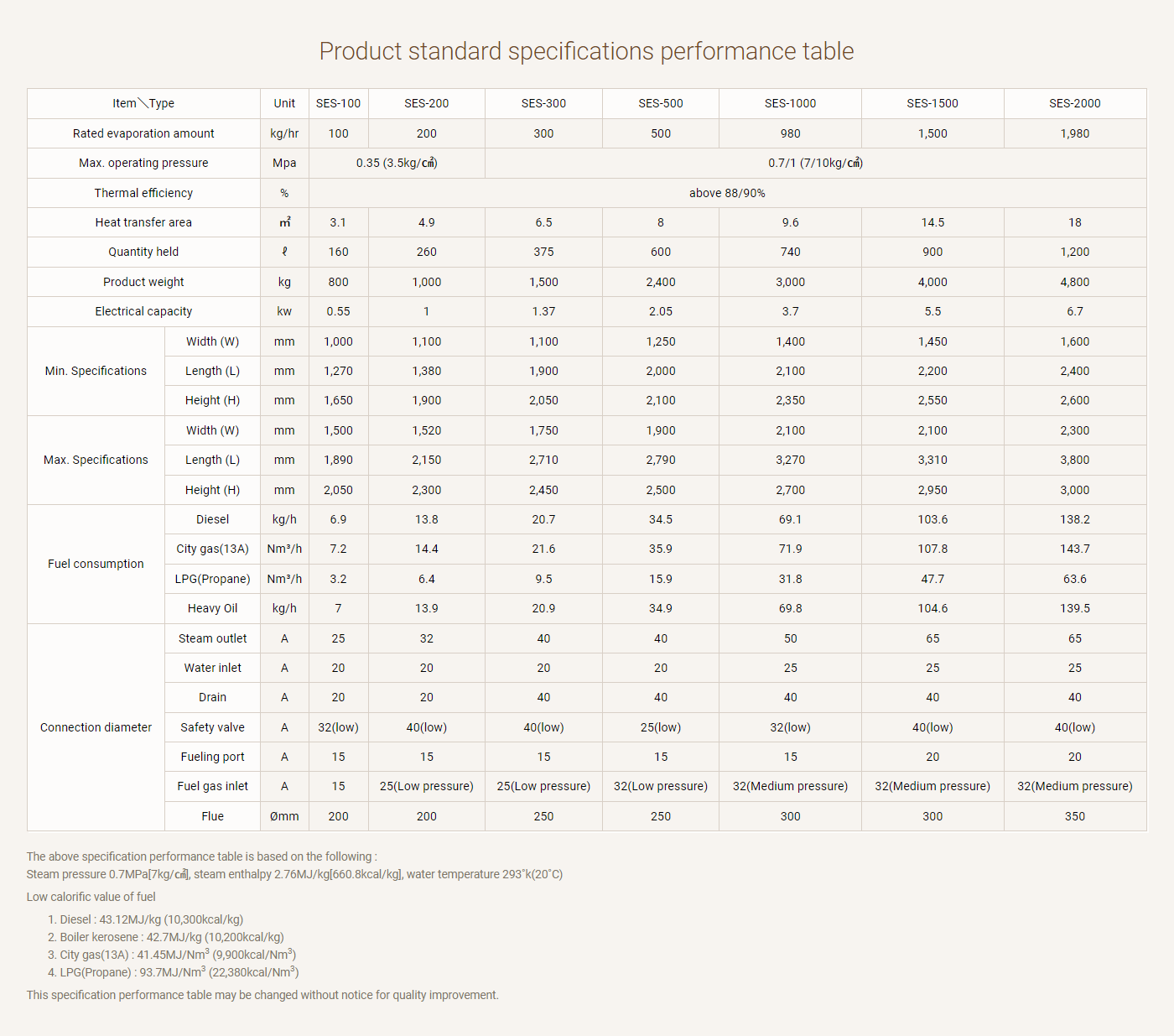

Product standard specifications performance table
| Item＼Type | Unit | SES-100 | SES-200 | SES-300 | SES-500 | SES-1000 | SES-1500 | SES-2000 | |
|---|---|---|---|---|---|---|---|---|---|
| Rated evaporation amount | kg/hr | 100 | 200 | 300 | 500 | 980 | 1,500 | 1,980 | |
| Max. operating pressure | Mpa | 0.35 (3.5kg/㎠) | 0.7/1 (7/10kg/㎠) | ||||||
| Thermal efficiency | % | above 88/90% | |||||||
| Heat transfer area | ㎡ | 3.1 | 4.9 | 6.5 | 8 | 9.6 | 14.5 | 18 | |
| Quantity held | ℓ | 160 | 260 | 375 | 600 | 740 | 900 | 1,200 | |
| Product weight | kg | 800 | 1,000 | 1,500 | 2,400 | 3,000 | 4,000 | 4,800 | |
| Electrical capacity | kw | 0.55 | 1 | 1.37 | 2.05 | 3.7 | 5.5 | 6.7 | |
| Min. Specifications | Width (W) | mm | 1,000 | 1,100 | 1,100 | 1,250 | 1,400 | 1,450 | 1,600 |
| Length (L) | mm | 1,270 | 1,380 | 1,900 | 2,000 | 2,100 | 2,200 | 2,400 | |
| Height (H) | mm | 1,650 | 1,900 | 2,050 | 2,100 | 2,350 | 2,550 | 2,600 | |
| Max. Specifications | Width (W) | mm | 1,500 | 1,520 | 1,750 | 1,900 | 2,100 | 2,100 | 2,300 |
| Length (L) | mm | 1,890 | 2,150 | 2,710 | 2,790 | 3,270 | 3,310 | 3,800 | |
| Height (H) | mm | 2,050 | 2,300 | 2,450 | 2,500 | 2,700 | 2,950 | 3,000 | |
| Fuel consumption | Diesel | kg/h | 6.9 | 13.8 | 20.7 | 34.5 | 69.1 | 103.6 | 138.2 |
| City gas(13A) | Nm³/h | 7.2 | 14.4 | 21.6 | 35.9 | 71.9 | 107.8 | 143.7 | |
| LPG(Propane) | Nm³/h | 3.2 | 6.4 | 9.5 | 15.9 | 31.8 | 47.7 | 63.6 | |
| Heavy Oil | kg/h | 7 | 13.9 | 20.9 | 34.9 | 69.8 | 104.6 | 139.5 | |
| Connection diameter | Steam outlet | A | 25 | 32 | 40 | 40 | 50 | 65 | 65 |
| Water inlet | A | 20 | 20 | 20 | 20 | 25 | 25 | 25 | |
| Drain | A | 20 | 20 | 40 | 40 | 40 | 40 | 40 | |
| Safety valve | A | 32(low) | 40(low) | 40(low) | 25(low) | 32(low) | 40(low) | 40(low) | |
| Fueling port | A | 15 | 15 | 15 | 15 | 15 | 20 | 20 | |
| Fuel gas inlet | A | 15 | 25(Low pressure) | 25(Low pressure) | 32(Low pressure) | 32(Medium pressure) | 32(Medium pressure) | 32(Medium pressure) | |
| Flue | Ømm | 200 | 200 | 250 | 250 | 300 | 300 | 350 | |
The above specification performance table is based on the following :
- Steam pressure 0.7MPa[7kg/㎠], steam enthalpy 2.76MJ/kg[660.8kcal/kg], water temperature 293˚k(20˚C)
- Low calorific value of fuel
- Diesel : 43.12MJ/kg (10,300kcal/kg)
- Boiler kerosene : 42.7MJ/kg (10,200kcal/kg)
- City gas(13A) : 41.45MJ/Nm3 (9,900kcal/Nm3)
- LPG(Propane) : 93.7MJ/Nm3 (22,380kcal/Nm3)
- This specification performance table may be changed without notice for quality improvement.
