Once-through boiler
Once-through boiler SEN Series SEN-600/800/1000/1500/1700/2000/2500/3000
It is a highly efficient, economical boiler that ensures long life and safety through its uniquely structured, efficient two-row water pipe arrangement.
- Product Features
-
- The efficient 2-row water pipe arrangement of the unique structure ensures long life and safety without generating soot.
- It is a highly efficient and economical boiler that achieves a thermal efficiency of over 90% using only the main body without a feedwater preheater.
- The tubular structure with improved durability maintains high efficiency and long lifespan.
- Equipped with a high-performance steam separator as standard, it provides continuous supply of high-quality dry steam even during rapid load changes.
- When equipped with the artificial intelligence control device SE-Ai system, operation and maintenance become easier. (Optional)

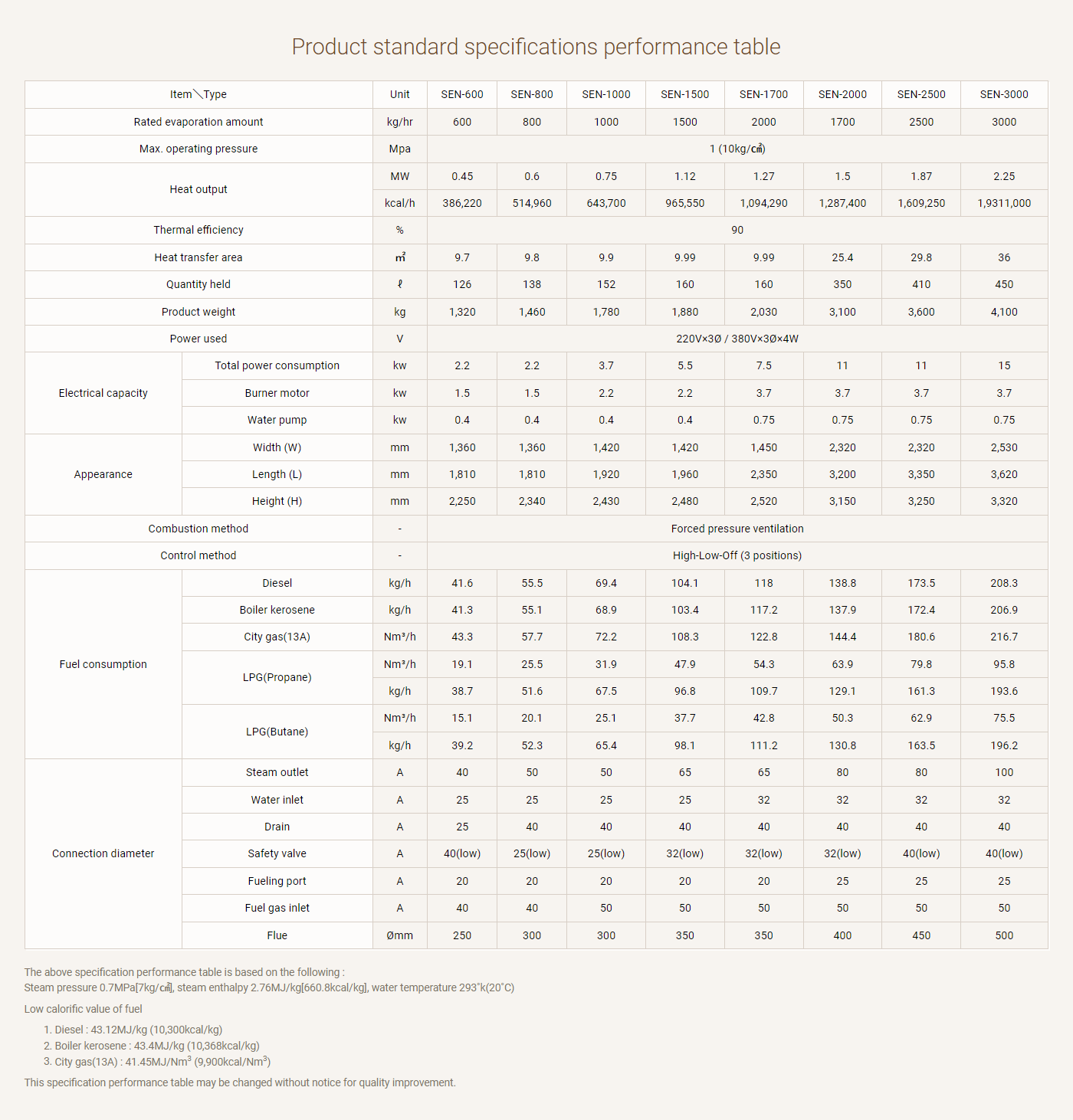

Product standard specifications performance table
| Item＼Type | Unit | SEN-600 | SEN-800 | SEN-1000 | SEN-1500 | SEN-1700 | SEN-2000 | SEN-2500 | SEN-3000 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated evaporation amount | kg/hr | 600 | 800 | 1000 | 1500 | 2000 | 1700 | 2500 | 3000 | |
| Max. operating pressure | Mpa | 1 (10kg/㎠) | ||||||||
| Heat output | MW | 0.45 | 0.6 | 0.75 | 1.12 | 1.27 | 1.5 | 1.87 | 2.25 | |
| kcal/h | 386,220 | 514,960 | 643,700 | 965,550 | 1,094,290 | 1,287,400 | 1,609,250 | 1,9311,000 | ||
| Thermal efficiency | % | 90 | ||||||||
| Heat transfer area | ㎡ | 9.7 | 9.8 | 9.9 | 9.99 | 9.99 | 25.4 | 29.8 | 36 | |
| Quantity held | ℓ | 126 | 138 | 152 | 160 | 160 | 350 | 410 | 450 | |
| Product weight | kg | 1,320 | 1,460 | 1,780 | 1,880 | 2,030 | 3,100 | 3,600 | 4,100 | |
| Power used | V | 220V×3Ø / 380V×3Ø×4W | ||||||||
| Electrical capacity | Total power consumption | kw | 2.2 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 11 | 15 |
| Burner motor | kw | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | 3.7 | |
| Water pump | kw | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 | 0.75 | |
| Appearance | Width (W) | mm | 1,360 | 1,360 | 1,420 | 1,420 | 1,450 | 2,320 | 2,320 | 2,530 |
| Length (L) | mm | 1,810 | 1,810 | 1,920 | 1,960 | 2,350 | 3,200 | 3,350 | 3,620 | |
| Height (H) | mm | 2,250 | 2,340 | 2,430 | 2,480 | 2,520 | 3,150 | 3,250 | 3,320 | |
| Combustion method | - | Forced pressure ventilation | ||||||||
| Control method | - | High-Low-Off (3 positions) | ||||||||
| Fuel consumption | Diesel | kg/h | 41.6 | 55.5 | 69.4 | 104.1 | 118 | 138.8 | 173.5 | 208.3 |
| Boiler kerosene | kg/h | 41.3 | 55.1 | 68.9 | 103.4 | 117.2 | 137.9 | 172.4 | 206.9 | |
| City gas(13A) | Nm³/h | 43.3 | 57.7 | 72.2 | 108.3 | 122.8 | 144.4 | 180.6 | 216.7 | |
| LPG(Propane) | Nm³/h | 19.1 | 25.5 | 31.9 | 47.9 | 54.3 | 63.9 | 79.8 | 95.8 | |
| kg/h | 38.7 | 51.6 | 67.5 | 96.8 | 109.7 | 129.1 | 161.3 | 193.6 | ||
| LPG(Butane) | Nm³/h | 15.1 | 20.1 | 25.1 | 37.7 | 42.8 | 50.3 | 62.9 | 75.5 | |
| kg/h | 39.2 | 52.3 | 65.4 | 98.1 | 111.2 | 130.8 | 163.5 | 196.2 | ||
| Connection diameter | Steam outlet | A | 40 | 50 | 50 | 65 | 65 | 80 | 80 | 100 |
| Water inlet | A | 25 | 25 | 25 | 25 | 32 | 32 | 32 | 32 | |
| Drain | A | 25 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
| Safety valve | A | 40(low) | 25(low) | 25(low) | 32(low) | 32(low) | 32(low) | 40(low) | 40(low) | |
| Fueling port | A | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 25 | |
| Fuel gas inlet | A | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Flue | Ømm | 250 | 300 | 300 | 350 | 350 | 400 | 450 | 500 | |
The above specification performance table is based on the following :
- Steam pressure 0.7MPa[7kg/㎠], steam enthalpy 2.76MJ/kg[660.8kcal/kg], water temperature 293˚k(20˚C)
- Low calorific value of fuel
- Diesel : 43.12MJ/kg (10,300kcal/kg)
- Boiler kerosene : 43.4MJ/kg (10,368kcal/kg)
- City gas(13A) : 41.45MJ/Nm3 (9,900kcal/Nm3)
- This specification performance table may be changed without notice for quality improvement.
